This temperature activated project kit is also available as a The output of this board can be used to control other electronic circuits, turning them on automatically when it goes hot or cold.

The board has space for an LED with current limit resistor (both available separately) which will light when the output turns on.

The transistor configuration allows an output current of up to half an amp to be controlled. Operating voltage 3V to 10V (lower voltages allow for better adjustment of the switching point).

Features:

• The Temperature Switch Kit detects the temperature of its surroundings using a thermistor.
• The kit acts as an automated on/off switch (temperature dependant).

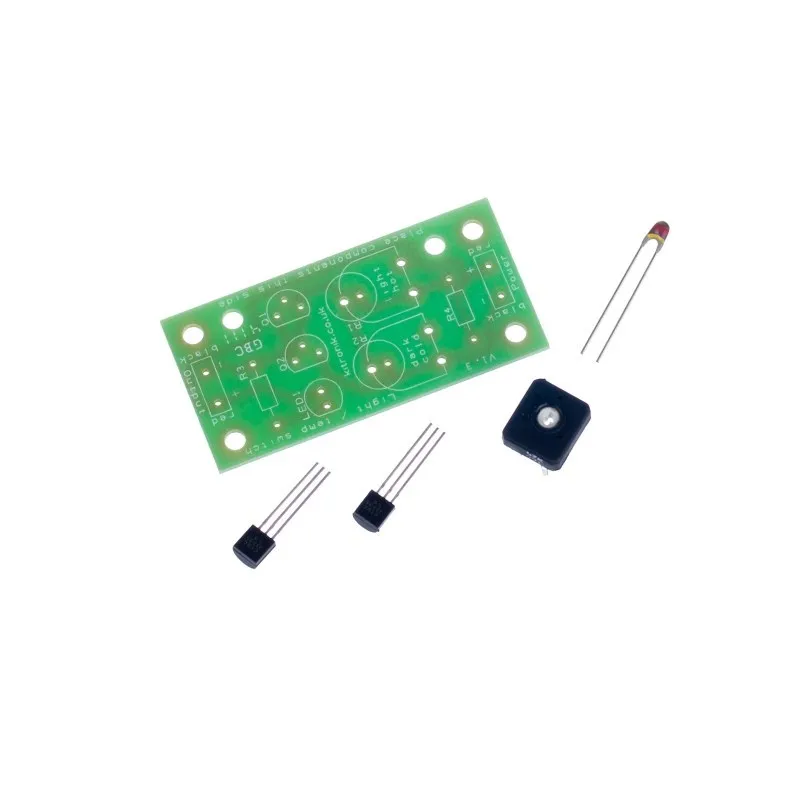

Contents:

• 1 x .
• 2 x .
• 1 x .
• 1 x .

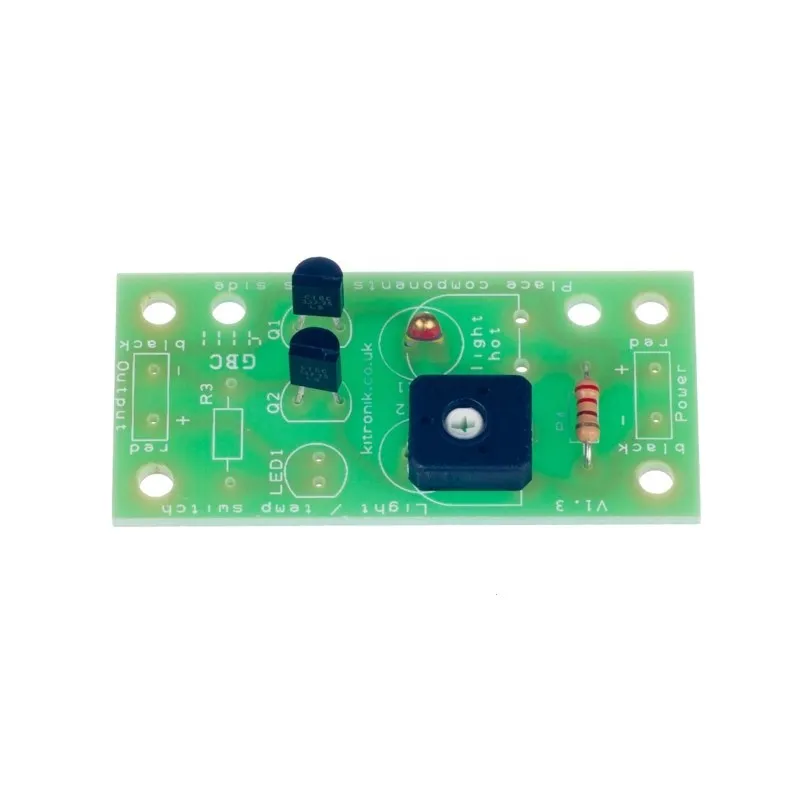

• 1 x Heat Activated Switch PCB

Possible applications include:

• Babies bath over temperature indicator.
• Automatic fan.

Dimensions:

• PCB Length: 53mm.
• PCB Width: 25.5mm.

Requires:

• .
• .
• .

Resources:

• .

• .

Note:

• This kit requires soldering.
